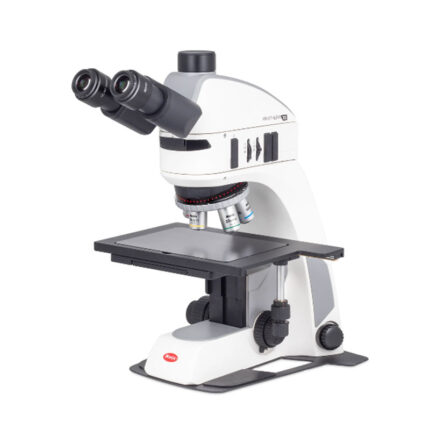

PA53MET
The PA53MET provides customizable optics and lighting systems, such as BF, BF/DF or DIC to meet all user needs. Reflected Light and Transmitted Light can be used simultaneously for unique samples when needed. This microscope can be upgraded to a motorized stage for Low Magnification Tiling of large samples.
Specifications
- Binocular/Trinocular Observation Tube (100:0 / 0:100)
- Erect type (F.N 25) 10X Eyepieces, Diopter adjustable, Reticle optional
- 5-position Nosepiece with DIC slot
- Stroke range: 29.5 mm / Coarse and Fine focusing knob., Motorized Z (PA53 MET 3D)
- Coarse: 17.7 mm/revolution / Fine: 0.1 mm/revolution (1 μm scale)
- Upper limit stopper, Torque adjustment ring
- IL switch and ECO switch
- Length x width x height 246 x 572 x 514mm
- Contrast : IL BF, IL DF, IL Pol, TL BF
- Plan S-APO (Standard)
- 5X/0.15 (W.D=20mm)
- 10X/0.3 (W.D=12mm)
- 20X/0.45 (W.D=3mm)
- 50X/0.8 (W.D=1mm)
- 100X/0.9 (W.D=0.5mm)(optional)
- LPlan S-APO(optional)
- 20X/0.4 (W.D=12mm)
- 50X/0.55 (WD=8mm)
- 100X/0.8 (W.D=3.3mm)
- Stage 4×4″ Stage, 6×6” (Optional)
