Description

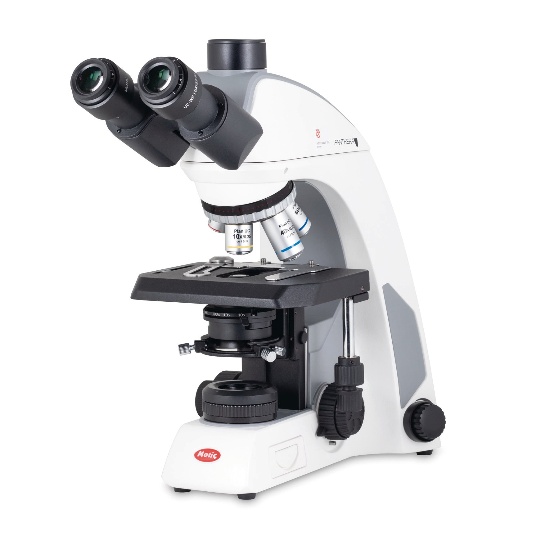

Panthera C2
Routine Grade Microscope
Specifications
- Colour Corrected Infinity Optical System (CCIS®)
- Trinocular head 30º inclined ; Interpupillary distance 48-75mm
- Fixed 50:50 Light Split
- Widefield WF 10X Eyepieces FOV-20mm with diopter adjustment
- Reversed quintuple revolving nosepiece Coded
- CCIS® Plan Achromatic UC objectives
- Objective information
- 4X/0.10 (WD 30.5 mm)
- 10X/0.25 (WD 17.4mm)
- 40X/0.65/S (WD 0.6mm)
- 60X/0.8/S (WD 0.35 mm)(Optional)
- 100X/1.25/S-Oil (WD 0.14mm)
- Built in mechanical rackless stage (Right-hand control)
- X&Y Mechanical Stage range 75 x 50mm
- Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slider slot
- Turret condenser for BF/DF/PH (Optional)
- Coaxial coarse and fine focusing adjustment with tension adjustment
- LED illumination with Motic Light Tracer
- Contrast BF, DF, PH, Simple Pol, Fluorescent
- Accessories included Immersion oil (5ml), power cord, allen hexagonal key, thumb screw,
- vinyl dust cover
- Length x width x height 282x210x396mm
- Weight 8.4kg
