Panthera TEC POL Epi Trinocular
Panthera TEC POL Epi Trinocular

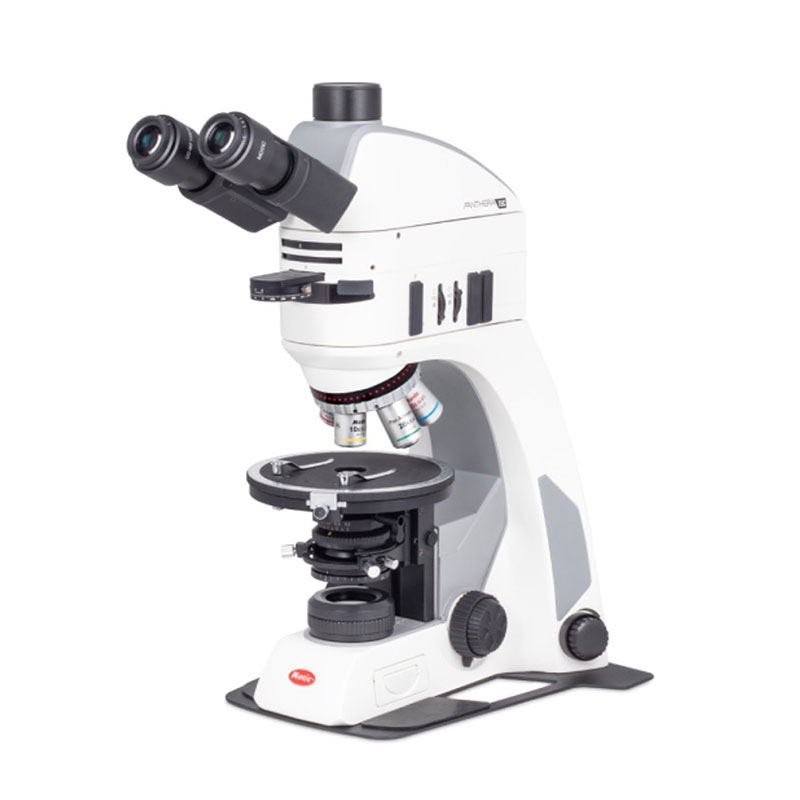

Panthera TEC POL Epi Trino is a trinocular microscope with a set of UC Plan Achromatic objectives, working with UC eyepieces of 20mm Field of View. An interchangeable 30W Halogen/3W LED light source is part of a Full-Köhler setup in Transmitted light.
Panthera TEC POL Epi Trinocular
A new level of Transmitted/Incident light microscope for diverse Polarization applications:
Panthera TEC POL Epi Trino is a trinocular microscope with a set of UC Plan Achromatic objectives, working with UC eyepieces of 20mm Field of View. An interchangeable 30W Halogen/3W LED light source is part of a Full-Köhler setup in Transmitted light. Incident light is provided by a compact illuminator with 3W LED light source. The Motic LightTracer system with memory function, a built-in Low-Energy mode and an LED feedback indicator helps to optimize your workflow.
Specifications
- Binocular/Trinocular head, siedentopf type Observation Tube
- Widefield UC-WF10X/20mm Eyepieces, +/- 4 diopter on both eyepieces
- CCIS® LD Plan Achromatic & S-Apo (Pb free), DIN
- 5X/0.13 (WD 20.3mm)
- 10X/0.25 (WD 17.5mm)
- 20X/0.40 (WD 8.1mm)
- S-Apo 50X/0.80 (WD 1mm)
- Circular rotating 360º, lockable , Mechanical XY stage (Optional)
- Contrast Options : POL EPI, POL TL, Bertrand Lens
Contact us for more details : info@mikros-th.com
